ELITE BY MOBILIS, MULTI-CONDUCTOR ELECTRIC RAIL

The most suitable solution to meet our customers requirements and bring power to move

Mobile electrification system
from 20A up to 200A, 4 or 5 poles

3D view: Discover the INNO by MOBILIS multi-conductor rail from every angle ?

3D view: Discover the conductor bar ELITE by MOBILIS in all its aspects

Features and benefits of the multiconductor rail ELITE by MOBILIS

The solution for the most various applications

Are you looking for a conductor bar system from 20 to 200A ? ELITE by MOBILIS is the solution.

Whatever your requirement in mobile electrification is, this multiconductor bar, equipped with 4 or 5 conductors and its large choice of options will suit you.

Easy to set up

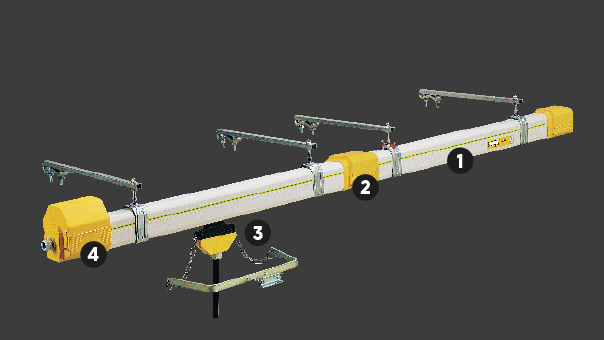

Select 9 components to get an ELITE by MOBILIS electrified line.

Our webcatalogue helps you prepare your inquiry in a few minutes.

Modular systems

Tailor made curved systems
High temperature version (+75°C)
Protection lips for dusty environment
And: ventilation element, interruption element, introduction gate, transfert elements, maintenance tools

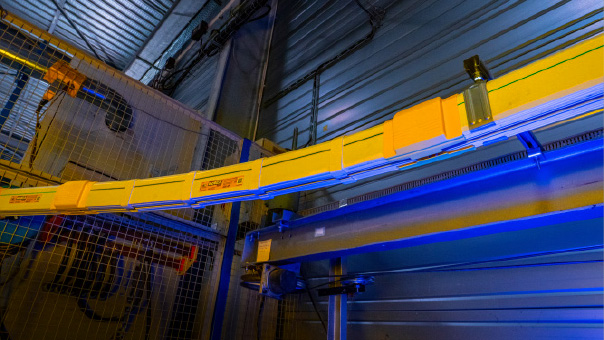

The busbars are used as well inside as outside.

You can take down a busbar system ELITE by MOBILIS at any time.

Easy and safe connection

Self breaking screws for an optimal connection.

The ideal torque and the maxi connected surface reduce power drop.

Quick and easy assembly

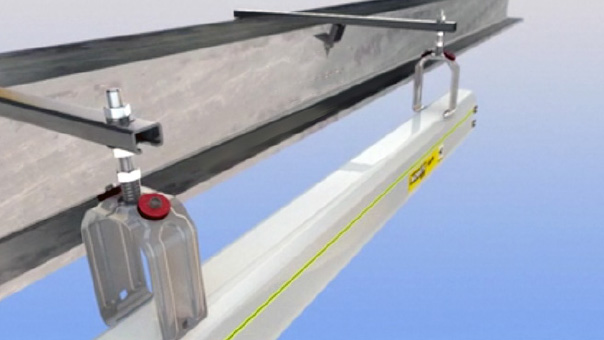

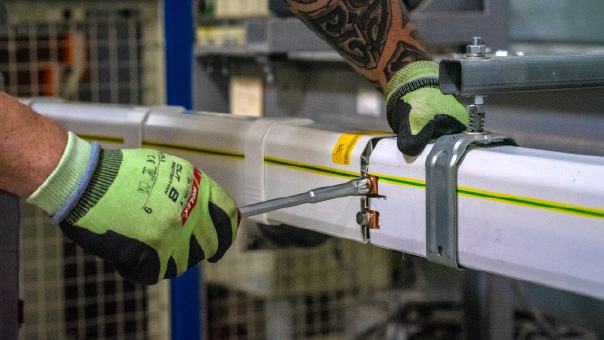

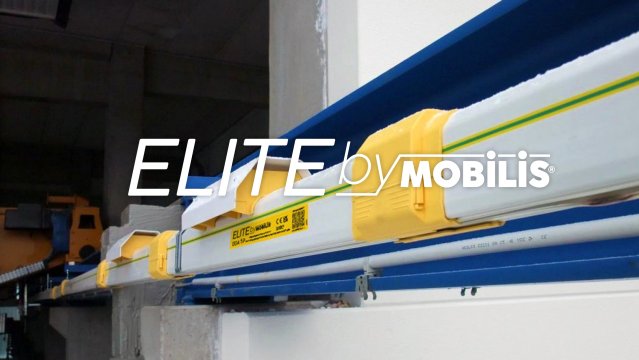

Just clip the bars into the self aligning sliding hangers.

No tools are required to assembly ELITE by MOBILIS accessories.

See the installation video

GAMME 2 BENEF 6 604x340

Safety, reliability, durability

The specific profile of the rail provides stability to the line and is IP23 rated so it is finger safe and resistant to rain.

Upkeep requirements are minimized providing lower installation and lifetime maintenance costs.

ELITE by MOBILIS - maximum versatility and modularity

Conductor bar systems ELITE by MOBILIS are mainly used to deliver power to:

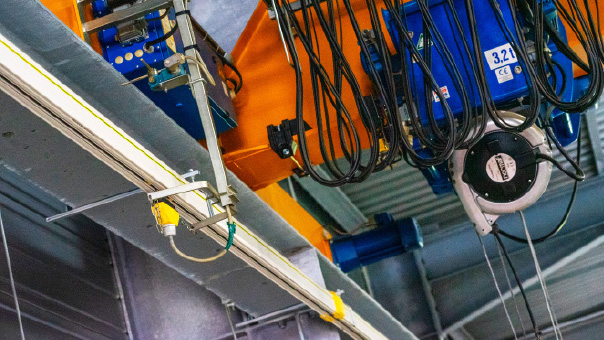

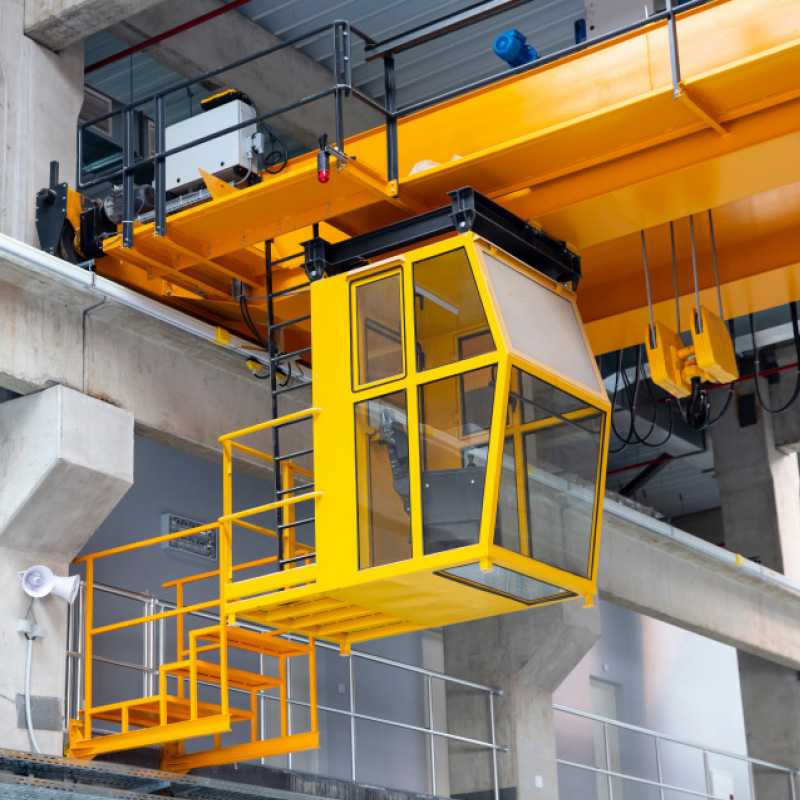

Cranes

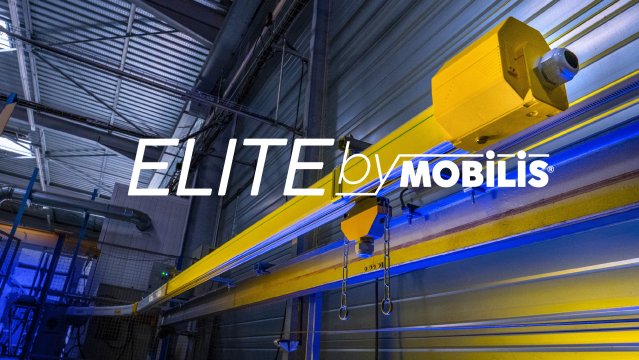

Jibs and hoists
Automated storage
Tasksaver systems
Theatre stages
Wastewater treatment or composting plants

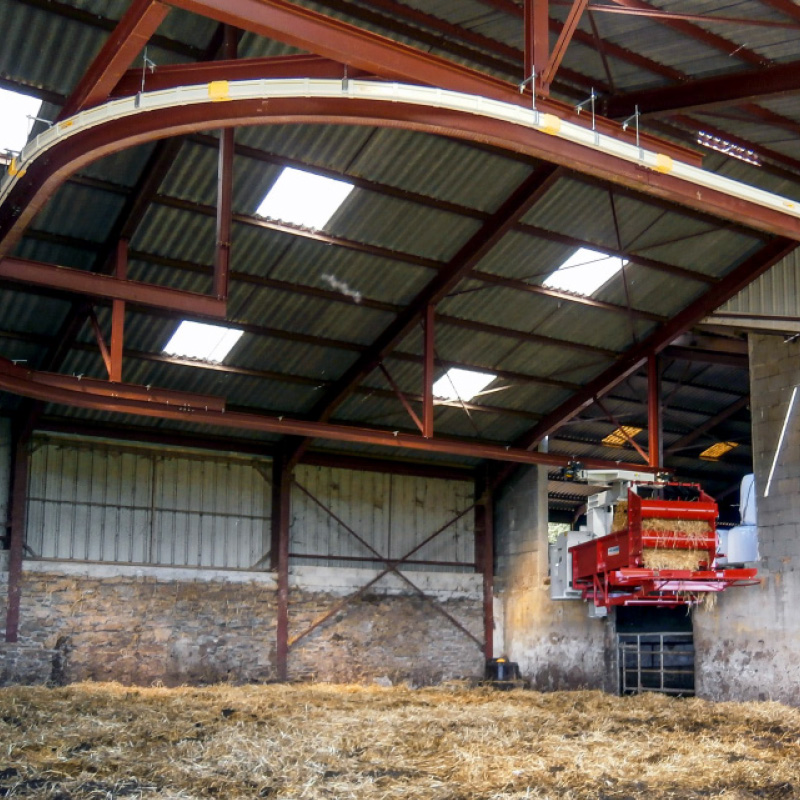

Or many other applications inside or outside

In case of use in an area open to the public, additional safety measures should be implemented (protection level IP4X required according to EN60204-32).

Busbar, trolley … - technical features

Construction

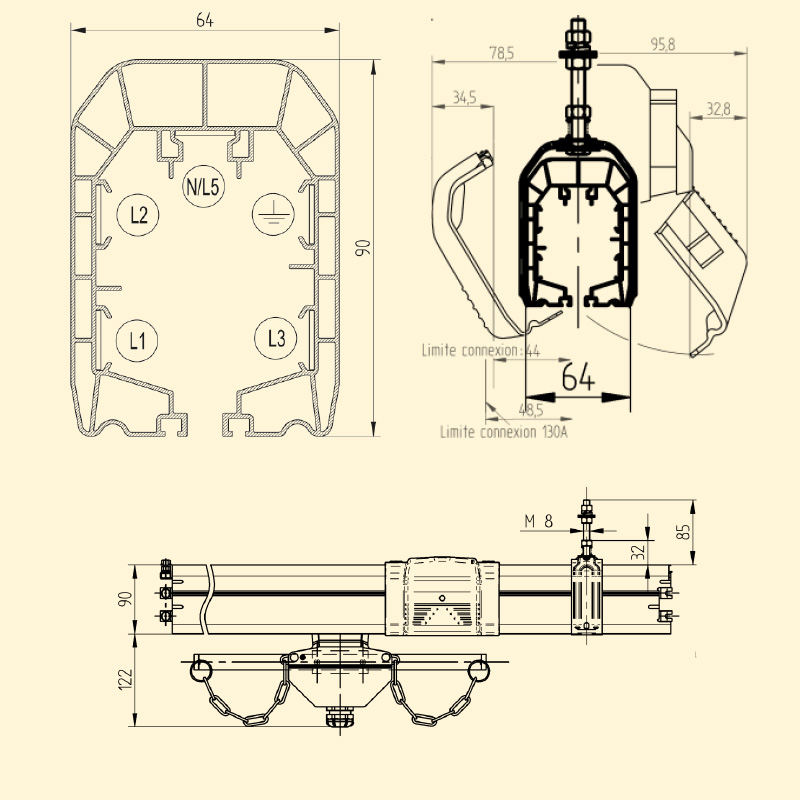

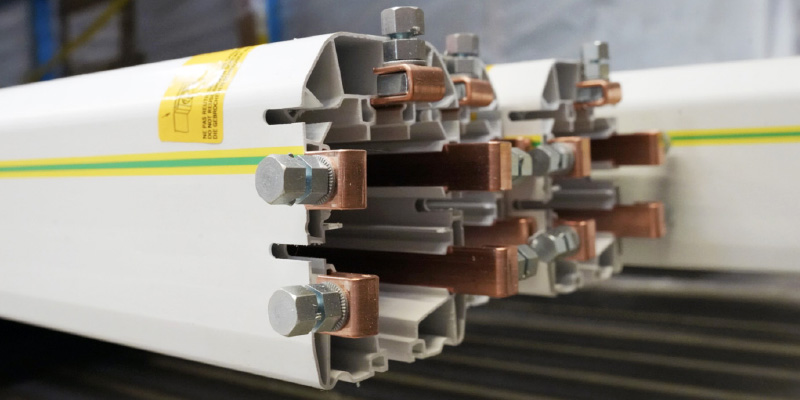

Profile	Honeycomb PVC compact profile – closed system for a maximum safety
Dimensions du profil	l 64 mm h 90 mm
Overall dimensions	To ease assembly, keep 250mm minimum free space from the busbar
Length of the line	Unlimited with expansion joint(s) Expansion joint required if: - calibre 20A and L > 140m - calibre 40A up to 100A and L > 150m - calibre 130A up to 200A and L > 250m
Flame resistance	All materials are self-extinguishing; they pass successfully glowing/hot line tests under 960°C for elements in contact with live parts and V-0 according to UL-94.
Conductors material	20A: stainless steel 40A up to 200A: copper
Maximum speed of the trolleys	180m/min with high speed trolley for straight lines 70m/min with articulated trolley in curves
Endurance	Trolleys have been tested to run at least 2000km

Use conditions

Suitable environment	Category 3 of ISO 2081 (outside mild), inside, outside use under rain or dust. A version with 600h resistance under saline mist is available. Please consult.
Applicable standards	EN60439-2, EN61439-6, EN60204-32, CE, UKCA
Temperature of use	Standard: -30°C … +55°C, High temperature: -30°C … +75°C
Protection index	IP23 according to EN60529 (assemblied line with all required accessories)

Electrical performances

Intensities	20A, 40A, 60A, 100A, 130A, 160A, 200A
Poles	4 or 5 poles - The ground conductor (PE) is marked on the line by a green-yellow strip. The neutral conductor (N), when present, is located in the top section of the casing.
Rated operational and insulation voltage	750V alternative, 50Hz for standard version 440V alternative, 50Hz for high-temperature version
Protection against short circuits	Intensities ≤ 130A: I_cw < 10kA Intensities 160 and 200A TR: I_PK = 11kA
Insulating distance between conductors or between conductors and accessible parts	Distance in the air: 10 mm min. Creepage distance: 30 mm min. (according to EN60204-32)

Intensity according to duty cycle

The intensity of the rail is the minimum admissible value of the rail.
According to temperature and duty cycle the admissible value can be higher:

Temperature of use	Duty cycle	Max. admissible value
Temperature of use	Duty cycle	40A	60A	100A	130A	160A	200A
35°C	80%	72A	90A	117A	127A	162A	211A
40°C		67A	86A	109A	117A	155A	195A
55°C		48A	63A	86A	87A	131A	140A
35°C	100%	68A	85A	114A	120A	152A	184A
40°C		64A	82A	106A	109A	145A	171A
55°C		47A	61A	82A	83A	121A	126A
