MULTICONDUCTOR BAR SYSTEM INNO BY MOBILIS
Easy and quick to install, INNO by MOBILIS is the solution for standard lines with the same MOBILIS quality and safety.
Electrification multiconductor system
40A and 60A, 4 poles
3D view: Discover the INNO by MOBILIS multi-conductor rail from every angle ?
3D view: discover the multiconductor busbar INNO by MOBILIS
Features and benefits of the multiconductor rail INNO by MOBILIS
The solution 40A and 60A for the standard requirements
Whether manufacturer, installer or end user you will find with INNO by MOBILIS the way to satisfy your economical and technical requirements.
Are you looking for a straight electrical system to work in standard conditions inside or outside? INNO by MOBILIS is the solution.

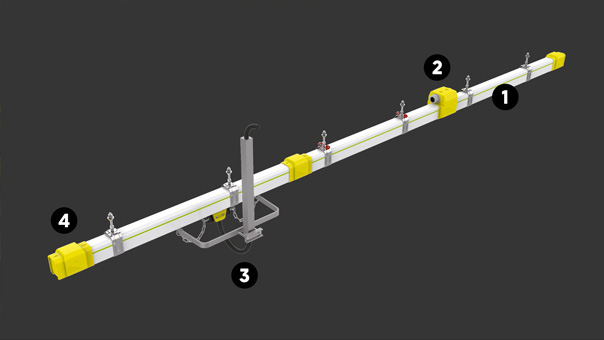

Easy to set up
Select 10 components to get an INNO by MOBILIS electrified line.
Our webcatalogue helps you prepare your inquiry in a few minutes.
Quick delivered, at the best price
- Available on stock
- Delivery within 48h after confirmation of order
- The best price for 40A and 60A

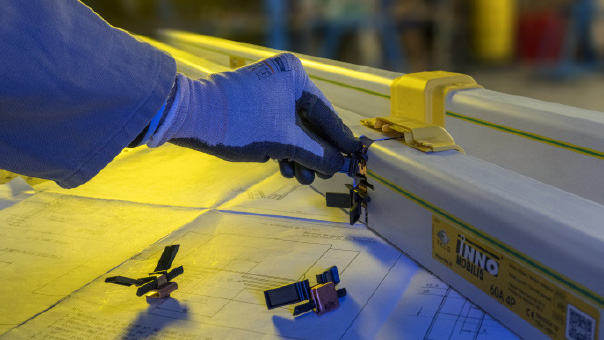

Easy to set
Lightweight and compact, the multiconductor busbar INNO by MOBILIS is easy to set, even in tight spaces.
No tools are required for the reusable connections.
Safety first of all
The rigid closed profile is rated IP23 so it is finger safe and resistant to rain.
Reliability, durability

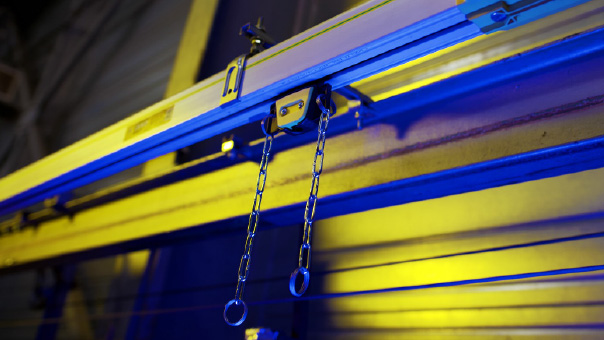

Trolleys durability has been tested and exceeds the standard requirements, providing lower installation and lifetime maintenance.
INNO by MOBILIS - the electrical supply system for straight lines
Mobile electrical busbars INNO by MOBILIS are used for electrical supply systems of straight lines:

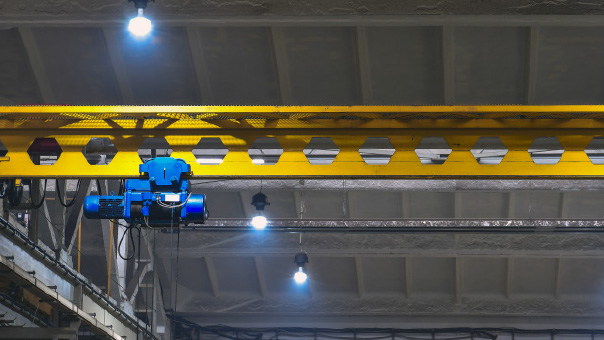

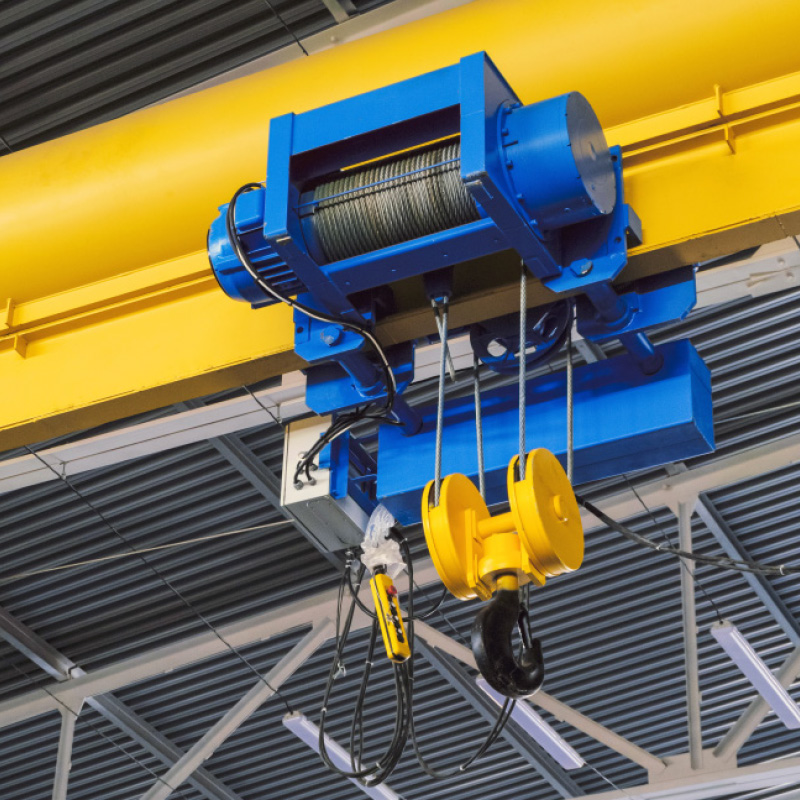

- Cranes

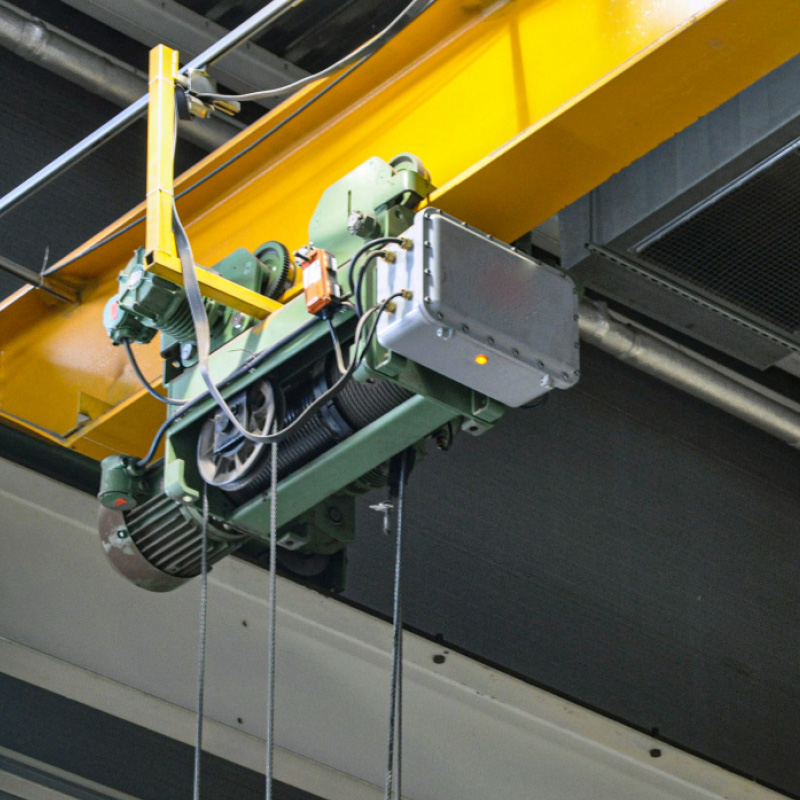

- Hoists
- Automated storage
- Tasksaver systems
- Electrical lifting equipment
Use conditions: inside or outside.
In case of use in an area open to the public, additional safety measures should be implemented (protection level IP4X required according to EN60204-32).
Busbar, trolley … - technical features

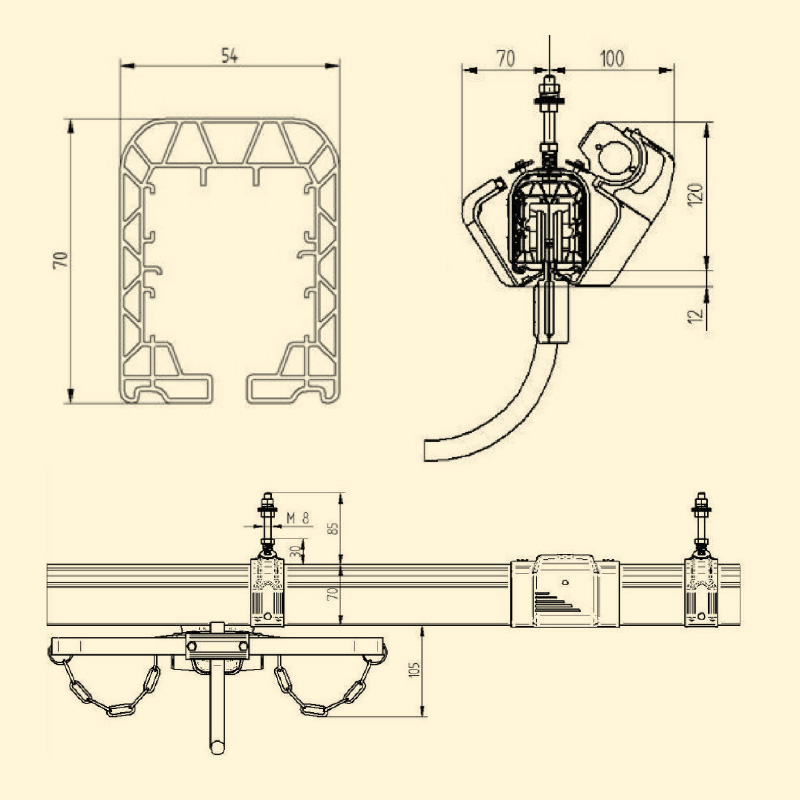

Construction

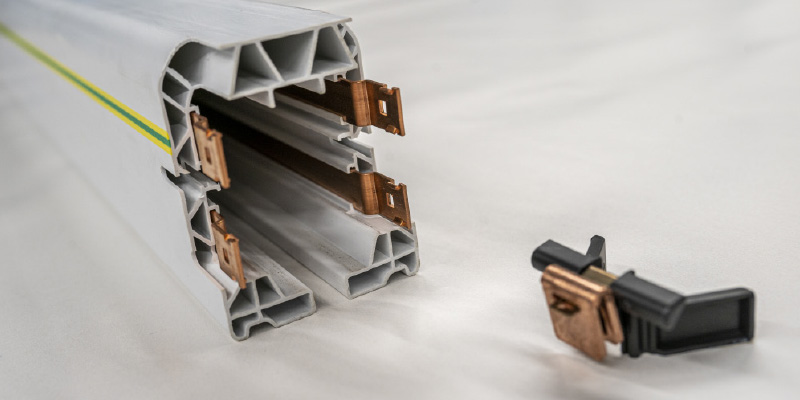

| Profile | Honeycomb PVC compact profile – closed system for a maximum safety |
| Dimensions of the profil | l 54mm h 70mm |
| Overall dimensions | To ease assembly, keep 100 mm minimum free space from the busbar |
| Length of the line | Until 250m without expansion joint |
| Flame resistance | All materials used to build Mobilis Elite lines are self-extinguishing; they pass successfully glowing/hot line tests under 960°C for elements in contact with live parts and V-0 according to UL-94. |
| Conductors material | Copper |
| Maximum speed of the trolleys | 60m/min |
| Endurance | Trolleys have been tested to run at least 2000km |
Use conditions
| Suitable environment | Category 3 of ISO 2081 (outside mild), inside, outside use under rain or dust |
| Applicable standards | EN61439-1, EN61439-6, EN60204-32, CE, UKCA |
| Temperature of use | -30°C … +55°C |
| Protection index | IP23 according to EN60529 (assemblied line with all required accessories) |
Electrical performances
| Intensities | 40A / 60A |
| Poles | 4 poles - The ground conductor (PE) is marked on the line by a green-yellow strip |
| Rated operational and insulation voltage | 690VAC 50Hz, 60Hz or DC |
| Protection against short circuits | Icw < 10kA |
| Insulating distance between conductors or between conductors and accessible parts |
|
Intensity according to duty cycle
The intensity of the rail is the minimum admissible value of the rail. According to temperature and duty cycle the admissible value can be higher:
| Temperature of use | Duty cycle | Max. admissible value | |
| 40A | 60A | ||
| 35°C | 80% | 63A | 87A |
| 40°C | 59A | 76A | |
| 55°C | 46A | 51A | |
| 35°C | 100% | 59A | 83A |
| 40°C | 46A | 71A | |
| 55°C | 44A | 47A | |
INNO by MOBILIS - Guarantee
Our equipment is guaranteed one year against any material or manufacturing defect recognized by ourselves. As we are not responsible for its installation and operation, our guarantee covers only replacement or repair (at our own choosing) of the part recognized to be defective. We do not accept responsibility for any defects arising from faulty supervision or maintenance. We also disclaim liability for any production stoppages that may result. Any arbitration shall be held in Strasbourg, even when several defendants are involved

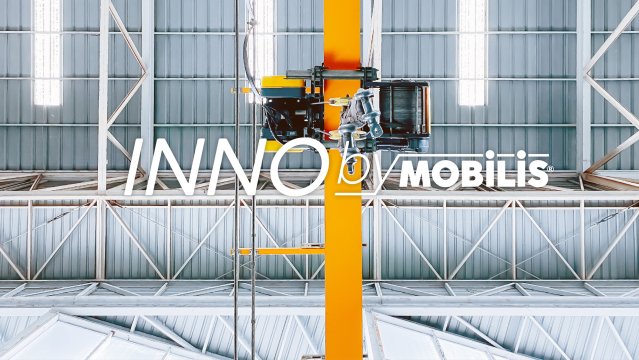

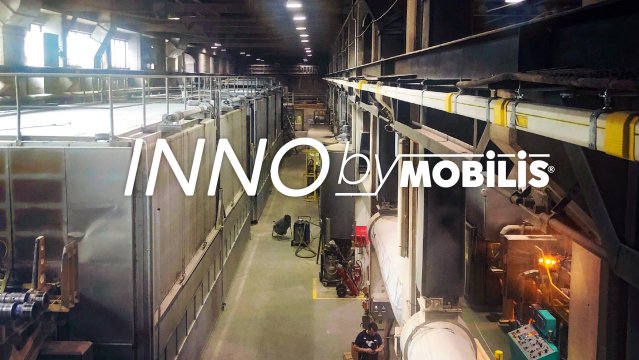

INNO by MOBILIS - Recent installations
I HAVE A PROJECT; IS INNO BY MOBILIS FOR ME?
Standard
lines
Intensities
40A & 60A
Best
price
Available
on stock
Follow us … we help you build your project.
