MONOCONDUCTOR RAIL MOVIT BY MOBILIS

This is the monoconductor system to use for high amperages with as many poles as needed.

Mobile electrification system from 315A up to 450A
even 630A with monoconductor rails

3D view: Discover the INNO by MOBILIS multi-conductor rail from every angle ?

3D view: discover the monoconductor rails Movit by Mobilis

Features and benefits of the monoconductor rail Movit by MOBILIS

The solution for the high amperage and long applications

You need more than 300A for an especially long line? Try MOVIT by MOBILIS!

Build your lines up to 630A and without expansion joint until 250m.

Easy to set up

Select 9 components to get a MOVIT by MOBILIS electrified line.

Our webcatalogue helps you prepare your inquiry in a few minutes.

Modular systems

This flexible system can be used as well inside as outside.

MOVIT by MOBILIS provides a multiple poles solution for medium or extra long lines.

GAMME 3 BENEF 4 604x340

Easy and safe connection

The stainless tracks and aluminium conductors ensure a better conductivity.

Track of curved shape for an optimized and controlled contact.

Quick and easy assembly

Just clip the bars into the self-aligning sliding hangers.

See the installation video

GAMME 3 BENEF 6 604x340

Safety, reliability, durability

The specific H profile of the rail provides stability to the line and is IP23 rated so it is finger safe and resistant to rain.

Upkeep requirements are minimized providing lower installation and lifetime maintenance costs.

MOVIT by MOBILIS - for heavy applications

Conductor bar systems MOVIT by MOBILIS are mainly used to deliver power to:

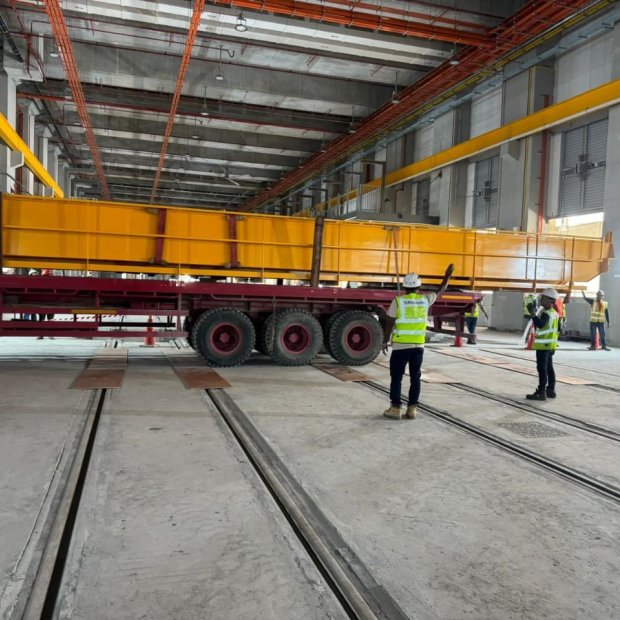

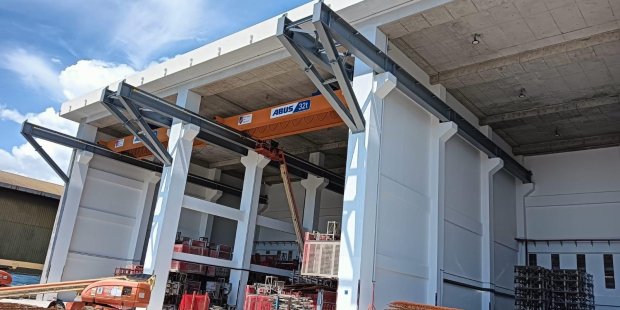

High intensity cranes and long lines
Hoists

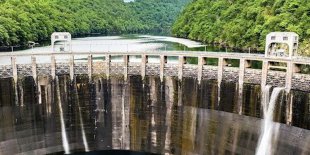

Quarries

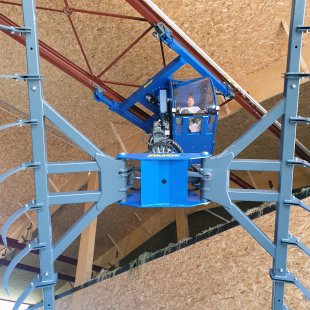

Or many other applications inside or outside

In case of use in an area open to the public, additional safety measures should be implemented (protection level IP4X required according to EN60204-32).

GAMME 3 APPLI 1 CARREE 800x800

GAMME 3 APPLI 2 CARREE 800x800

Rails, collector … - technical features

Construction

Profile	PVC sheath – H profile, aluminium conductor
Overall dimensions	See drawing
Weight of the rail	0.81kg/m for 315A ; 1.03kg/m for 450A ; 1.26 kg/m for 630A
Length of the line	Unlimited with expansion joint(s) Expansion joint required if: - L > 250 m for 630A - L > 350 m for 315A and 450A
Flame resistance	All plastic materials are self-extinguishing; they pass successfully glowing/hot line tests under 960°C for elements in contact with live parts and V-0 according to UL-94.
Conductors material	Aluminium
Maximum speed of the trolleys	600m/min
Endurance	Collectors have been tested to run at least 2000km.

Use conditions

Suitable environment	Category 3 of ISO 2081 (outside mild), inside, outside use under rain or dust. A version with 600h resistance under saline mist is available. Please consult.
Applicable standards	EN60439-2, EN61439-6, EN60204-32, CE, UKCA
Temperature of use	-30°C … +55°C
Protection index	IP23 according to EN60529 (assemblied line with all required accessories)

Electrical performances

Intensities	315A, 450A, 630A
Poles	Unlimited - The ground conductor (PE) is marked on the track by a green-yellow strip.
Rated operational and insulation voltage	750VAC, 50Hz for standard version
Protection against short circuits	I_cw = 8.5kA / 0.2s I_PK = 17kA Other please consult
Insulating distance between conductors or between conductors and accessible parts	Distance in the air: 10mm min. Creepage distance: 30 mm min. (according to EN60204-32)

Intensity according to duty cycle

The intensity of the rail is the minimum admissible value of the rail.
According to temperature and duty cycle the admissible value can be higher:

Temperature of use	Duty cycle	Max. admissible value
Temperature of use	Duty cycle	315A	450A	630A
35°C	80%	440A	540A	638A
40°C	80%	405A	496A	580A
35°C	100%	415A	500A	570A
40°C	100%	380A	460A	530A

MOVIT by MOBILIS - Guarantee

Our equipment is guaranteed one year against any material or manufacturing defect recognized by ourselves. As we are not responsible for its installation and operation, our guarantee covers only replacement or repair (at our own choosing) of the part recognized to be defective. We do not accept responsibility for any defects arising from faulty supervision or maintenance. We also disclaim liability for any production stoppages that may result. Any arbitration shall be held in Strasbourg, even when several defendants are involved.
