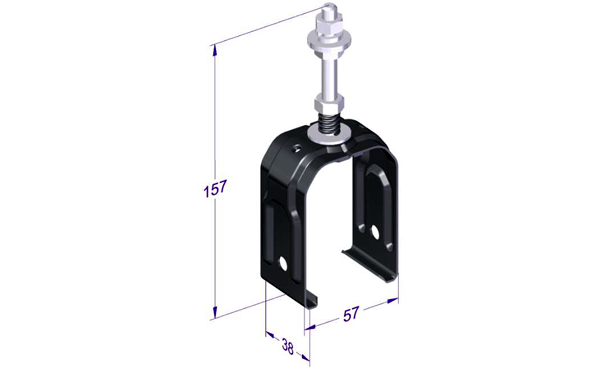

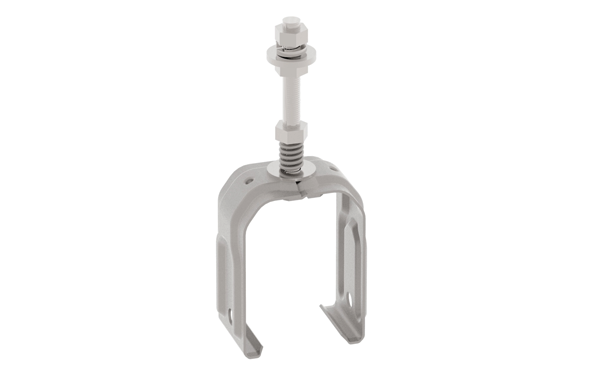

Sliding hanger
Supports the line and allows expansion, self-aligning with the line on assembly.
Selection of key components
According to the information you have provided, the INNO by Mobilis electrification line should include at least the components displayed and activated. Fill them in in numerical order.
Sliding hanger
Supports the line and allows expansion, self-aligning with the line on assembly.
Supports the line and allows expansion, self-aligning with the line on assembly.
Part numbers and compatibility
Ordering information
- Count 1 sliding hanger for each straight element less than 1.5m;
- Count 2 sliding hangers for each straight element from 1.5 to 4m ;
- Add 1 sliding hanger on the first element of the line;
- Count 2 sliding hangers for the ventilation element, if you have selected one (distance between centres 500mm for a 1m element, distance between centres 2m for a 4m element).
Part numbers
| Quantity | ||
|---|---|---|
|
Sliding hanger |
MI1510 |
|
